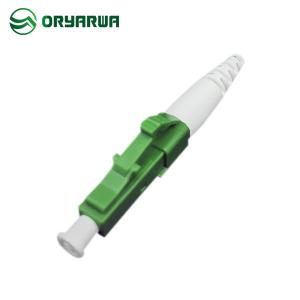

Single Mode 2.0mm LC Fiber Optic Connector Long Boot 18mm For Fiber Pigtail Assembly

Zhejiang Oryarwa Communication Equipment CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Single Mode 2.0mm LC Fiber Optic Connector Long Boot 18mm For Fiber Pigtail Assembly

  • 1
  • 2
  • 3

Brand Name : Oryarwa

Model Number : LC Fiber Optic Connector 2.0MM Boot 18MM

Certification : ISO9001

Place of Origin : Zhejiang

MOQ : 1000

Price : Negotiate

Payment Terms : T/T

Supply Ability : 6000000 PCS/Month

Delivery Time : 3-14 Days

Packaging Details : 200sets/Nylon bag ; Carton: 47*24*34CM

Product Name : LC Fiber Optic Connector 2.0MM Boot 18MM

85/85 Test : 2000H

Insertion Loss : ≤0.2dB

Durability : ≤0.2dB( 500 Times)

Cable OD : 2.0MM

Mode Type : Singlemode, Multimode

Boot Type : 2.0MM Short Boot 18MM

Boot Color : White

Housing Type : General

Housing Color : Green

Operating Temp. : -40℃~+80℃

Storage Temp. : -40℃~+80℃

Meet Standars : IEC61754-20 / YD/T 1272.1

Contact Now

Single Mode 2.0mm LC Fiber Optic Connector Long Boot 18mm For Fiber Pigtail Assembly

LC / APC Connector LC Pigtail Single Mode 2.0MM Long Boot 18MM for Fiber Pigtail Assembly

Detailed Product Description:

Product Name

LC Fiber Optic Connector 2.0MM Boot 18MM Color

Green

Mode Type

Singlemode, Multimode

Insertion Loss

≤0.2dB

Sleeve Pull Force

1-2.5N

Durability

≤0.2dB( 500 Times)

Operating Temp.

-40℃~+80℃

Standards

IEC61754-20 / YD/T 1272.1

Environmental and Mechanism:

Properties

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

500 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-12

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-6

≤0.2dB

Temperature Cycling

40ºC to +85ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%RH, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

-40ºC to +85ºC

≤0.2dB

Storage Temperature

-40ºC to +85ºC

≤0.2dB

Features:

> High interchangeability

> Insert loss less than 0.2dB

> Complies with IEC 61754-4, Flammability UL94 V-0 standard

> Zirconia Sleeve ,Compact design

> Choice of 0.9/2.0/3.0mm Boot

> Meet IEC and ROHS / REACH standards

> OEM ODM serivce new product design ability

Application:

> Patch panels
> Distribution frames
> Maintenance or emergency restoration of fiber networks
> FTTH Outlets
> Connection at the desk for LAN environments.

FAQ:

Q1: How can I get the sample?

Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,

our clients just need offer express account and pay the freight.

Q2: What is your MOQ?

Our MOQ is 1000PCS for Our normal models, if you need to open new mold.

MOQ will be check again based on your design.

Q3: What is your Lead time?

Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have

enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.

OEM project will be check delivery time again.

Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design

new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.


Q5: What certifications do you have?

All our product meet IEC standard, pass REACH, RoHS test.

Drawing:

OYH-JS-ZP-109 2.0mm 18boot.pdf

Reports:

HA0121030737CHEM_PPSU_ROHS(HATEK).pdf

HA0121030751CHEM_PPSU_REACH(HATEK).pdf
